WIPER PRESS-IN INCH

1.500" x 2.250" x 0.433" (38.10 mm x 57.15 mm x 11.00 mm)

H&D SKU: MC-1500X2250-433U-HD

Product Availability : In Stock

$41.10

Qty:

DESCRIPTION

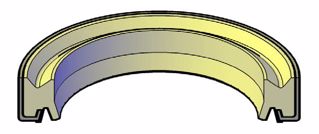

The MC-HD is a heavy duty metal encased double lip urethane wiper. The double lip design provides optimum contact with the rod to keep out contaminants. When used with a multi-lip sealing system they provide a dry clean rod.

These wipers are excellent for severe applications and are commonly found in Caterpillar equipment.

SEAL INFORMATION

Material Type (Primary Seal): POLYURETHANE

Material Type (Casing): CARBON STEEL

Durometer (Shore A): 92

Temperature Range (F): -65 TO 230

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µin) - DYNAMIC: 4<>16

Mating Surface Roughness - Ra (µin) - STATIC: 63 MAX

Part Number Definition (Inch): MC-(ROD DIAMETER)X(OD)-(HT)U-HD

Products specifications

ID (Inch)	1.500
OD (Inch)	2.250
Height (Inch)	0.433
ID (Metric)	38.10
OD (Metric)	57.15
Height (Metric)	11.00

Alternate Product Codes

CTC8C9131 (1)
,
MCHD-1506-D (1)
,
510-252000A (1)
