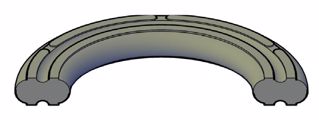

PISTON SEAL PNEUMATIC METRIC

1.575" x 1.969" x 0.157" (40.00 mm x 50.00 mm x 4.00 mm)

H&D SKU: MPSN-050A

Product Availability : In Stock

$14.95

Qty:

DESCRIPTION

The MPSN-A profile is designed for use in pneumatic cylinders with low axial height housings. The double-acting cylinder seal requires small housing dimensions and exhibits good sealing performance in small installation grooves.

Made from nitrile, this solid body seal provides superior low-pressure sealing.

SEAL INFORMATION

Durometer (Shore A): 71

Temperature Range (F): -5 TO 212

Max Pressure (psi): 175

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µm) - DYNAMIC: 0.1<>0.4

Mating Surface Roughness - Ra (µm) - STATIC: 0.8 MAX

Part Number Definition (Metric): MPSN-(BORE DIAMETER)A

Additional Part Number Definition (Metric): 40MM BORE = MPSN-040A

Products specifications

ID (Inch)	1.575
OD (Inch)	1.969
Height (Inch)	0.157
ID (Metric)	40.00
OD (Metric)	50.00
Height (Metric)	4.00

Alternate Product Codes

MPK62-050 (1)
,
MPSD-50 (1)
,
01-14643-01 (1)
