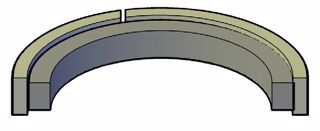

PISTON SEAL PS2000 NYLON

2.712" x 3.250" x 0.274" (68.88 mm x 82.55 mm x 6.96 mm)

H&D SKU: PS2027-52

Product Availability : In Stock

$36.92

Qty:

DESCRIPTION

The PS2000 piston seal is a double-acting piston seal capable of passing over ports. The reinforced, heat stabilized, thermoplastic sealing face expands and contracts to fill the gap between the piston and the cylinder wall and has a step-cut joint for easy installation.

The PS2000 piston seal will tolerate a considerable extrusion gap, reducing the possibility of piston to bore contact. It also offers excellent static load holding capability, and can easily pass over ports.

The square section nitrile energizer responds quickly to pressure changes, providing excellent sealing characteristics under all pressure conditions.

This seal is interchangeable with the PS914 style

SEAL INFORMATION

Material Type (Primary Seal): GLASS-FILLED NYLON

Material Type (Energizer): 80A NITRILE

Rockwell Hardness (M) 77

Rockwell Hardness ( R) 114

Temperature Range (F): -40 TO 230

Extrusion Gap at

Max Pressure (in): 0.032

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µin) - DYNAMIC: 4<>16

Mating Surface Roughness - Ra (µin) - STATIC: 63 MAX

Part Number Definition (Inch): PS20(2-DIGIT GROOVE WIDTH)-(BORE DIAMETER X 16)

NOTE: .282 GROOVE WIDTH = PS2027 .312 GROOVE WIDTH = PS2031 .377 GROOVE WIDTH = PS2037

Products specifications

ID (Inch)	2.712
OD (Inch)	3.250
Height (Inch)	0.274
ID (Metric)	68.88
OD (Metric)	82.55
Height (Metric)	6.96

Alternate Product Codes

7262510 (1)
