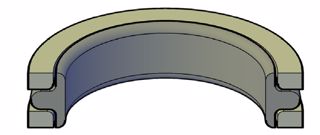

T-SEAL PISTON

1.250" x 1.500" x 0.304" (31.75 mm x 38.10 mm x 7.72 mm)

H&D SKU: TP-218WB

Product Availability : Only 7 Left

$17.96

Qty:

DESCRIPTION

The TP piston T-seal is designed to retrofit o-rings in no back-up, single back-up and two back-up standard industrial reciprocating glands. The TP seal combines a resilient sealing ring with a hard, split back-up ring on each side of the sealing element. Its compact design provides improved stability and extrusion resistance in dynamic fluid sealing applications.

The nitrile flange or base of the T-seal forms a tight seal in the gland and supports the nylon anti-extrusion back-up rings. When energized, the back-up rings bridge the extrusion gap to protect the rubber sealing element from extrusion and system contamination. The TP piston T-seal eliminates the spiral or twisting failure that can occur when o-rings are used against a dynamic surface.

The TP piston T-seal is directly interchangeable with corresponding TP-L seal, standard O-ring, O-ring w/Back-up (1 back-up – Intermediate Base; 2 back-ups – Wide Base), PSC and PSM seal grooves.

SEAL INFORMATION

Material Type (Primary Seal): NITRILE

Material Type (Support Rings): NYLON

Durometer (Shore A): 74

Temperature Range (F): -35 TO 220

Max Pressure (psi): 5000

Extrusion Gap WITH WEAR RINGS at Various Pressures (in):

5,000 PSI: 0.010

Extrusion Gap WITHOUT WEAR RINGS at Various Pressures (in):

5,000 PSI 0.003

Max Speed (ft/sec): 1.6

Mating Surface Roughness - Ra (µin) - DYNAMIC: 3<>12

Mating Surface Roughness - Ra (µin) - STATIC: 32 MAX

Part Number Definition (STANDARD): TP-(3-DIGIT NUMBER)

Part Number Definition (Intermediate Base): TP-(AS568 3-DIGIT NUMBER)IB

Part Number Definition (Wide Base): TP-(AS568 3-DIGIT NUMBER)WB

Products specifications

ID (Inch)	1.250
OD (Inch)	1.500
Height (Inch)	0.304
ID (Metric)	31.75
OD (Metric)	38.10
Height (Metric)	7.72

Alternate Product Codes

TP-218-WB (1)
