WEAR RING INCH

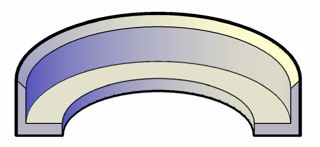

Picture of WEAR RING INCH
5.000" x 6.000" x 0.500" (127.00 mm x 152.40 mm x 12.70 mm)
H&D SKU: WR50-L600X050
Product Availability : On Back Order
$7.10

DESCRIPTION

These bearings are used as companion bearings for single and double-acting piston seals, primarily as bearings.



SEAL INFORMATION

Temperature Range (F): -65 TO 220

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µin) - DYNAMIC: 4<>16

Mating Surface Roughness - Ra (µin) - STATIC: 63 MAX

Part Number Definition (Inch): WR(CS)-L(OD)X(WIDTH)

Additional Part Number Definition (Inch): 6" OD X 5" ID X 1/2" WIDE = WR50-L600X050

Products specifications
ID (Inch) 5.000
OD (Inch) 6.000
Height (Inch) 0.500
ID (Metric) 127.00
OD (Metric) 152.40
Height (Metric) 12.70
Alternate Product Codes
